schelemixer

thisisasimpleanalogvideomixerbasedonthelm1881syncseparator

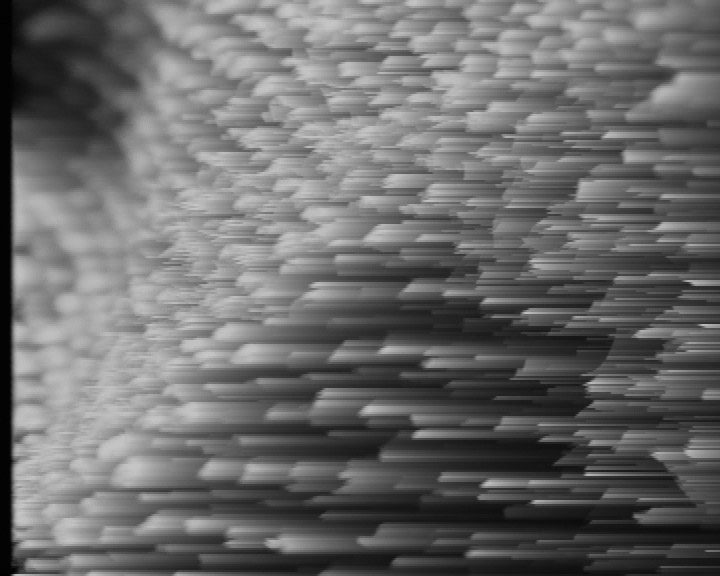

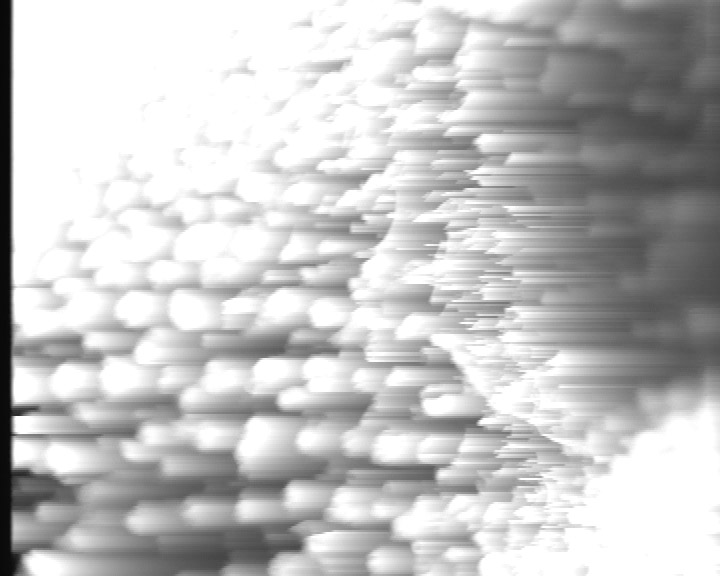

thereisacrossfadercrossdissolve50inthecenterandafadeeffectwith3settingsthefadeeffectquicklychargesacapacitorwiththevideosignalandslowlydischargesitbackintothevideosignalselectingthefilterwillfilteroutthecolorinformationresultinginablackandwhiteimage

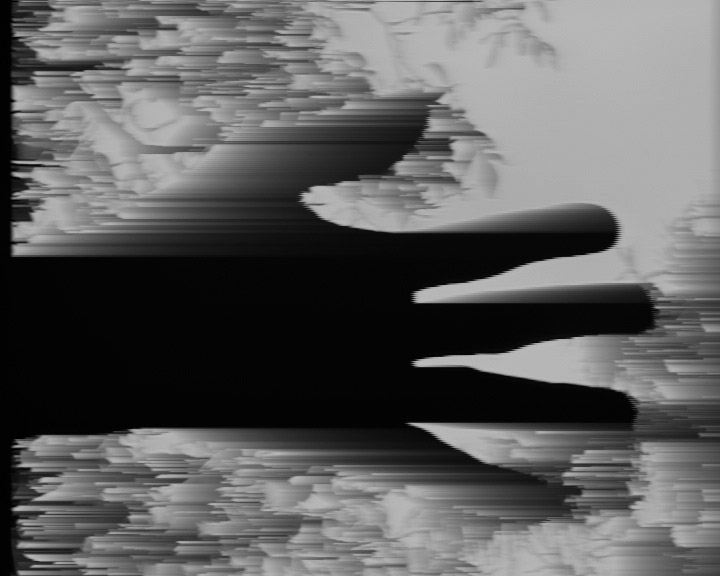

becauseallvideodeviceshaveslightlydifferentvideosyncspeedstheselectedvideowillstandstillonthescreenandtheothervideosignalwillscrollhorizontallythatiswherethenameschelecomesfromwhichisdutchforcrosseyed

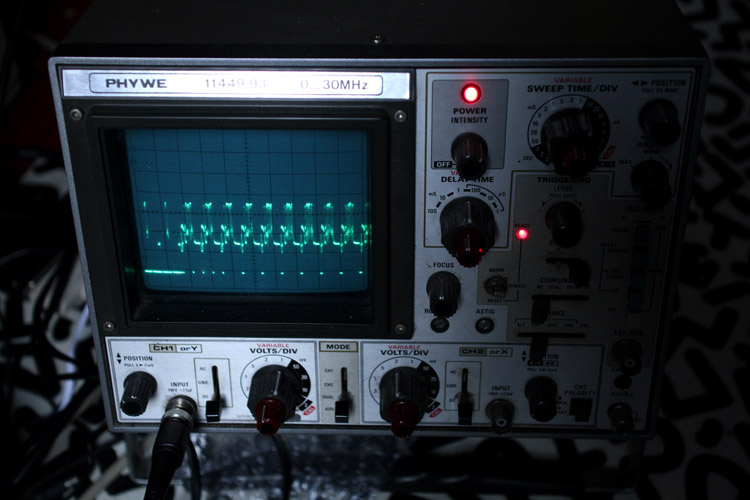

itworksbytakingthesyncofoneofthetwoconnectedvideosignalsandpushingitundertheoutputvideosignal
soblankingperiodswillpartiallybeignoredmakingitnot100percentvalidvideosignal

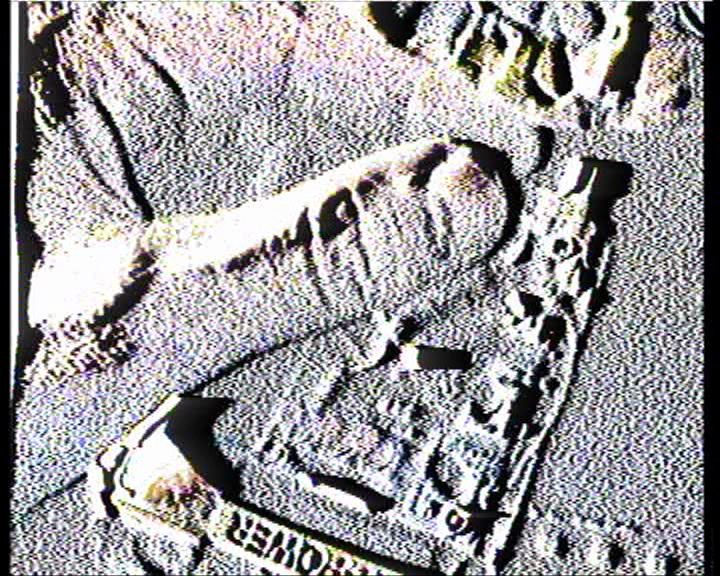

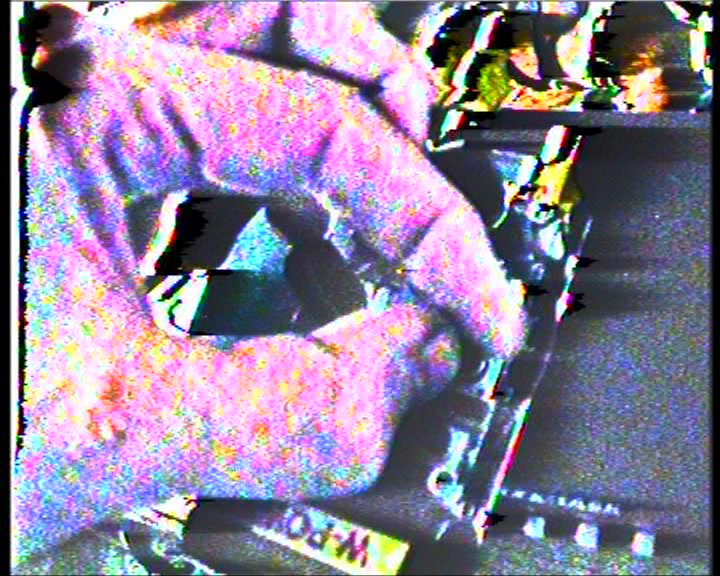

inthe2bversionextraeffectsareaddedthatwhenturnedoncandistortthevideosignalsomuchthatitwillbetobadfordisplayingitonavideoprojectorthiscanbesolvedbyaddingatimebasecorrectororyoucanconnectitdirectlytoaanaloguetv
theseeffectscanveryquiteabitdependingonthedevicethatyouconnectittosotrydifferentdevicesfordifferentresults

compatibilityntscandpal

links
buykitorassembled
assemblinginstructionsversion2b
assemblinginstructionsversion2c

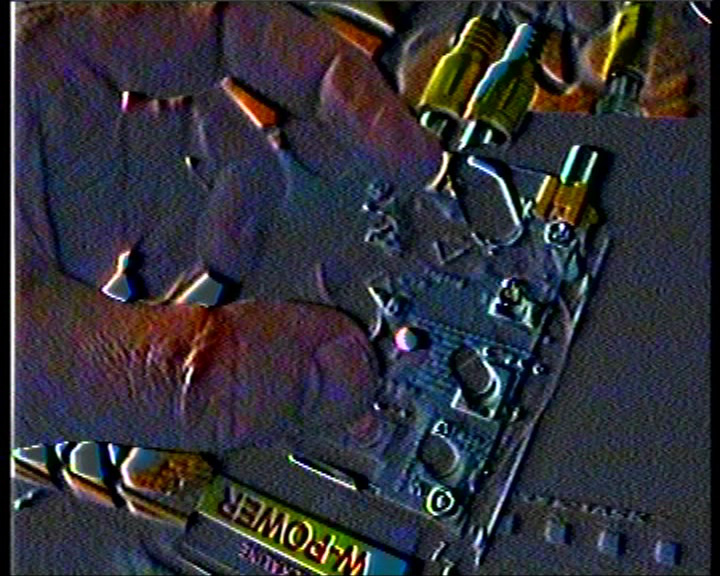

schelemixer2bscreenshots
schelemixer1

screenshotsv1

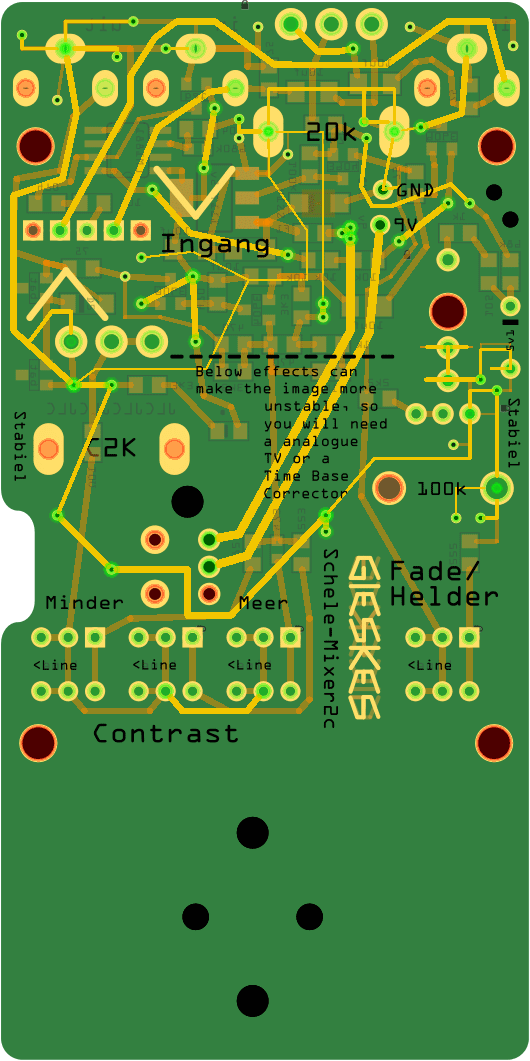

schelemixer2c
